Description

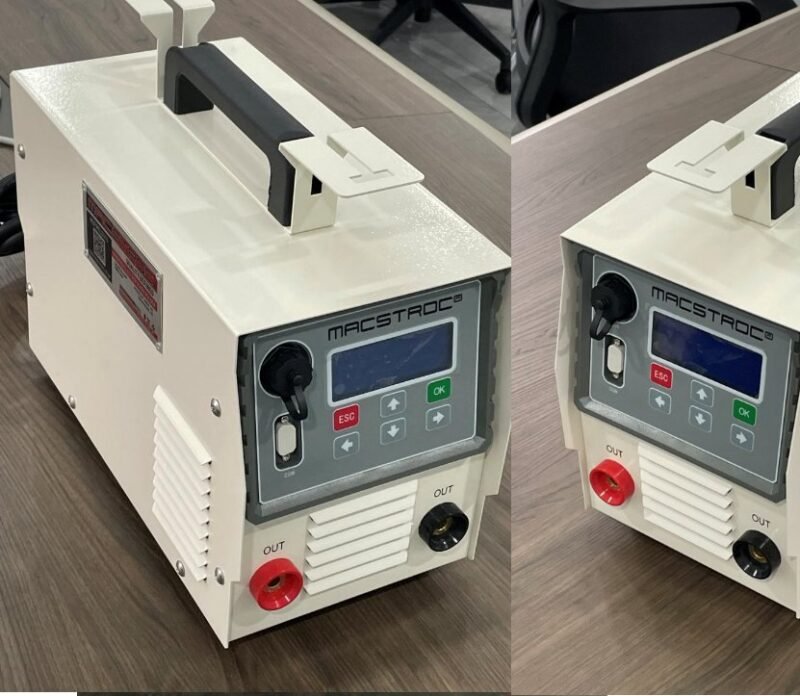

The MEFWELD series by Macstroc is a professional-grade lineup of inverter electrofusion welding machines engineered for reliable and efficient HDPE pipe welding across various industrial sectors in the UAE and GCC. Designed with a high-performance digital MCU control system, the machines provide advanced parameter control, precise detection, and enhanced protection for consistent welding results.
Equipped with a multi-language LCD interface and capable of storing up to 270 welding records, MEFWELD units are user-friendly and ideal for job sites demanding top-tier welding performance and adaptability. The wide voltage input range ensures seamless operation under fluctuating site power conditions, while the USB port, barcode scanner, and manual input make data retrieval and operation tracking fast and simple.
Whether you’re working on municipal, infrastructure, or oil & gas projects in the UAE, the MEFWELD315, MEFWELD500, MEFWELD630, and MEFWELD1000 models support pipe sizes from 20mm to 1000mm, delivering power outputs up to 18kW.
Perfect for contractors and pipe welding specialists in Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, and throughout the Middle East.
| Model | Welding Range (mm) | Rated Power | Input Voltage | Output Voltage | Rated Current | Weight | Data Storage | Output Port | Control Mode | Applications |
|---|---|---|---|---|---|---|---|---|---|---|
| MEFWELD315 | DN20–315mm | 3.5kW | AC220V ±20% | 75V | 55A | 15kg | 270 welds | Printer / USB | Constant Voltage / Constant Current | HDPE pipe welding for small to mid-size projects |
| MEFWELD500 | DN20–500mm | 12kW | AC380V ±20% | 150V | 60A | 20kg | 270 welds | Printer / USB | Constant Voltage / Constant Current | Civil, drainage, and utility networks |
| MEFWELD630 | DN20–630mm | 15kW | AC380V ±20% | 170V | 80A | 35kg | 270 welds | Printer / USB | Constant Voltage / Constant Current | Industrial piping and infrastructure applications |
| MEFWELD1000 | DN20–1000mm | 18kW | AC380V ±20% | 280V | 80A | 37kg | 270 welds | Printer / USB | Constant Voltage / Constant Current | Heavy-duty HDPE pipe welding in large-scale projects |
Technical Highlights:
-
Input Frequency: 40–65Hz
-
Ambient Temperature Range: –20°C to +50°C
-
Accuracy: <30.5%
-
Interface: High-brightness multi-language LCD
-
Features: USB data import, barcode/manual input, pipe fitting auto-retrieval
-
Protection: Advanced detection and protective functions
